A41

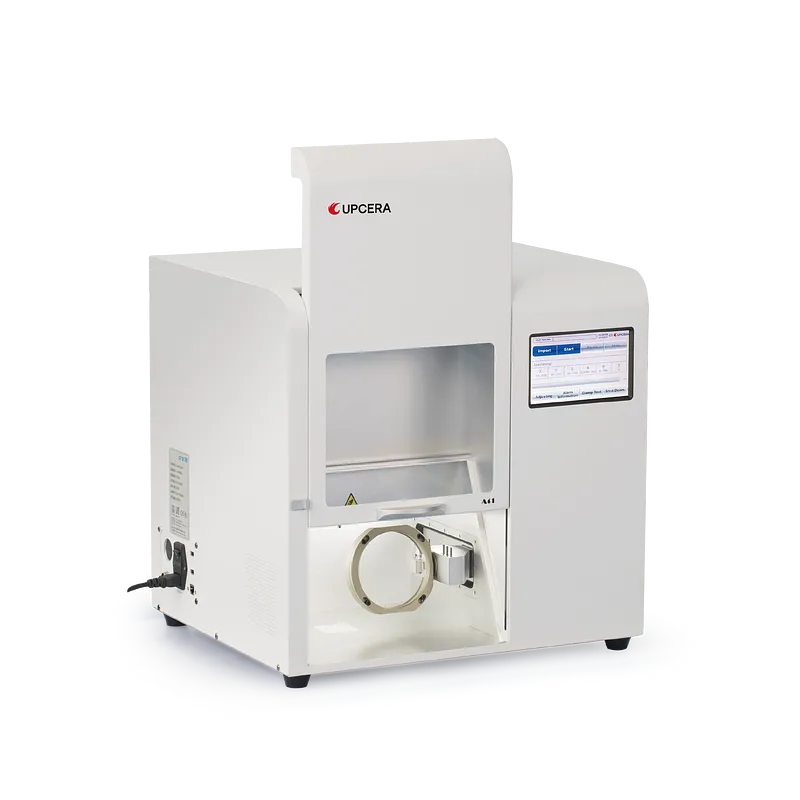

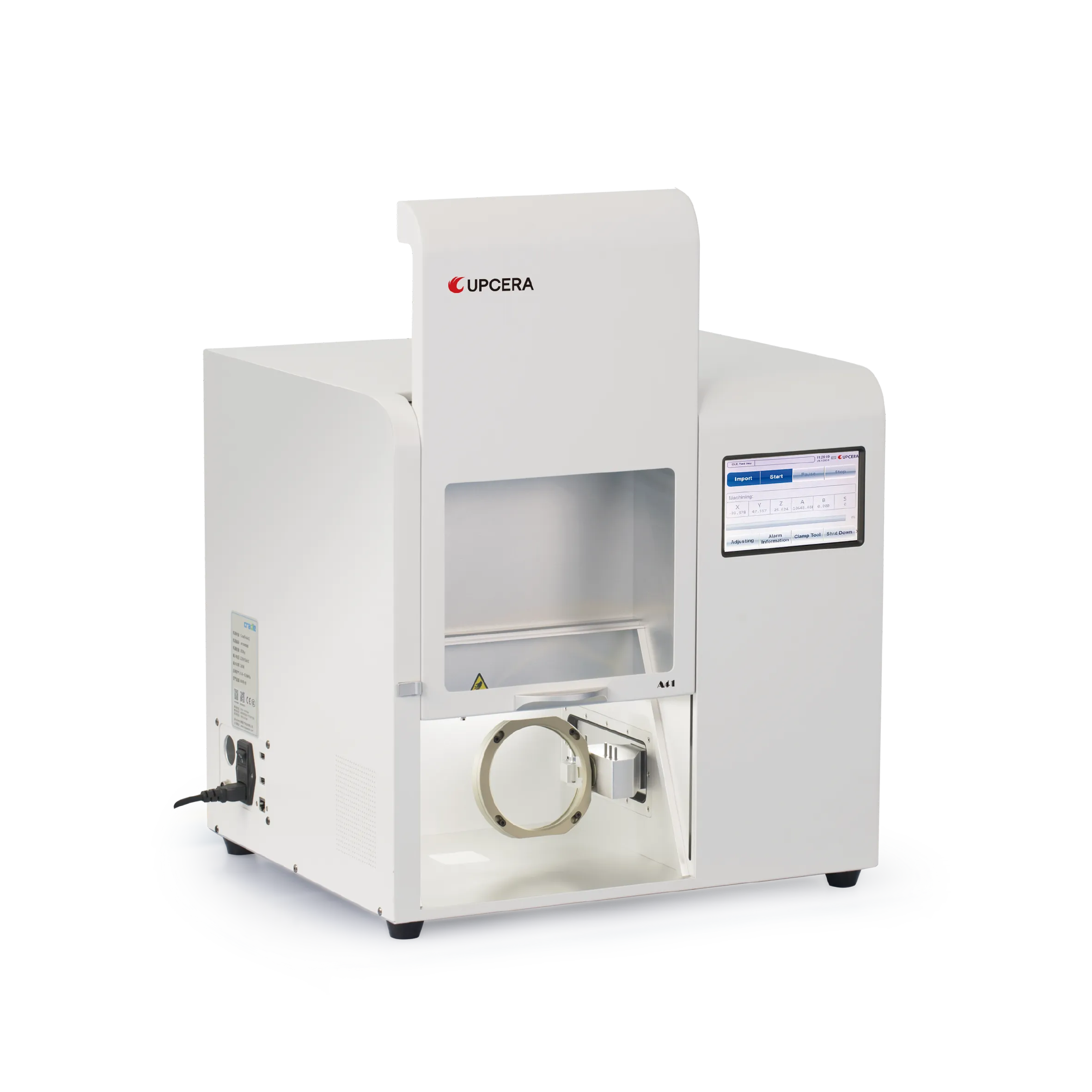

4-Axis Dry Milling Machine

Consult now>>

UPCERA

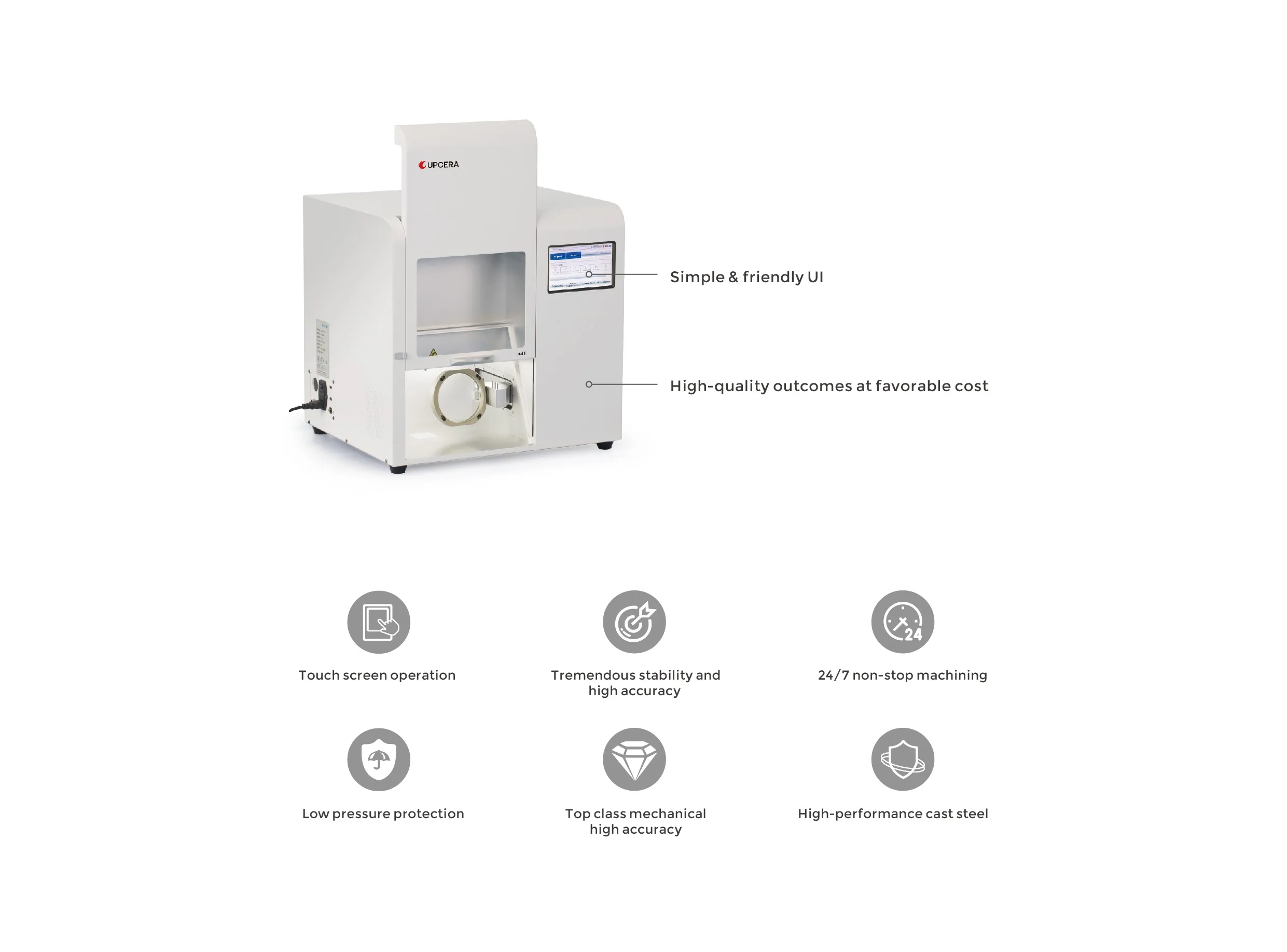

  • Touch screen operation

  • Tremendous stability and high accuracy

  • 24/7 non-stop machining

  • Low pressure protection

  • Top class mechanical high accuracy

  • High-performance cast steel

Device Parameters

Dimensions

54*49*53cm

Weight

85kg

Voltage

220V 50Hz ; 110V 60Hz (Optional)

Power

1.0KW

Compatible Compressed

0.5-0.8 MPa

Spindle Speed

60,000 rpm

Precision

< 0.01mm

Number of Bur

4

Cooling Type

Air cooling

Materials

Zirconia, PMMA, Wax, PEEK

Application

Coping, full contour, bridges, inlay, veneer, post-core crown, onlay, PEEK framework

Milling Speed

Zirconia, PEEK, PMMA (10 minutes/pc), Wax (3 minutes/pc), Framework (45 minutes/pc)

Downloads

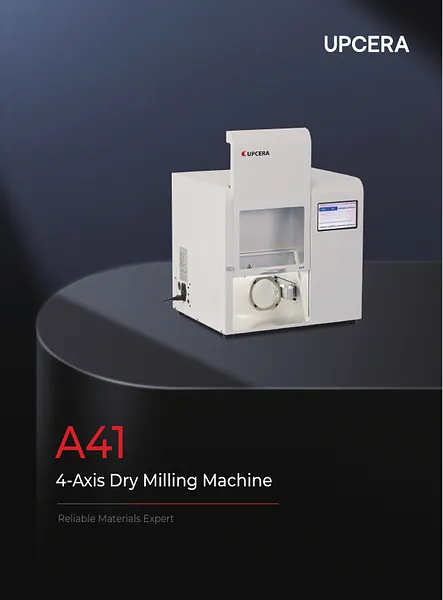

A41-2024.pdf

1.17 MB
