Dimensions

65*65*175cm

Weight

400kg

Voltage

220V 50Hz 110V 60Hz (Optional)

Power

4.5KW

CompatibleCompressed Air

0.55-0.8 MPa

Spindle Speed

60,000rpm

Processing accuracy

< 0.01mm

Rotation Angle

A axis is ±30°, B axis is ±360°

Number of Bur

16

Cooling Type

Water cooling

Materials

Titanium disc, PMMA, Pre-milled, Wax
Co-cr disk / Glass ceramic (optional)

Milling Speed

Customized butment (40 mins/unit)，Pre-milled butment (15 mins/unit)，Glass ceramic (10-30 mins/unit)，PMMA (10 mins/pcs), Wax(3 mins/unit)，Titanium framework (180 mins/unit)

Application

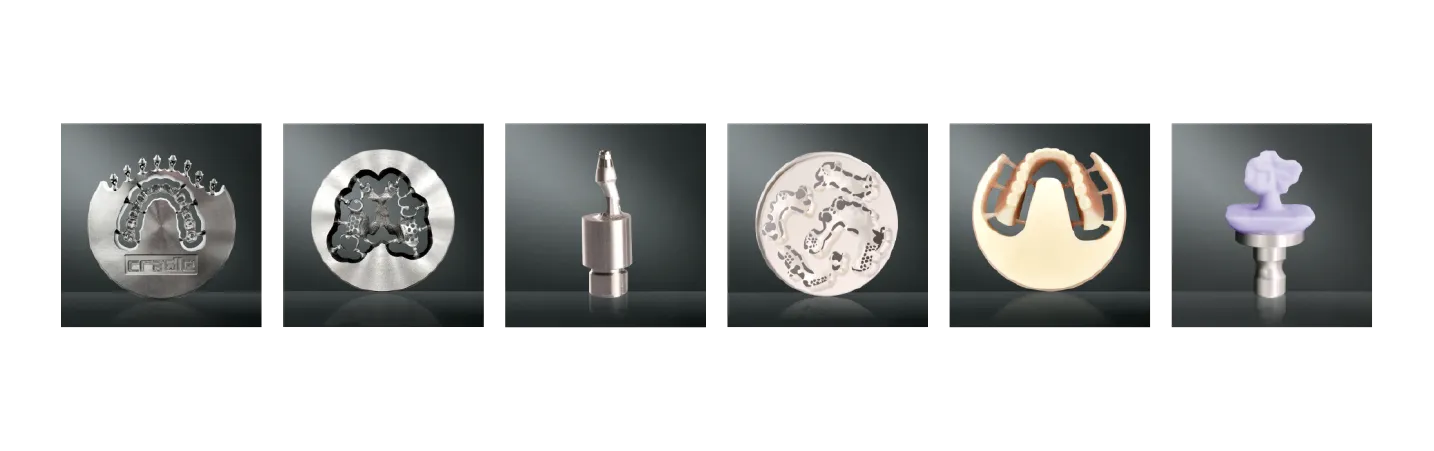

Customized abutment, implant bridge bar clip, pre-milled abutment inner coping,full crown，bridge / inlay, veneer (optional)
